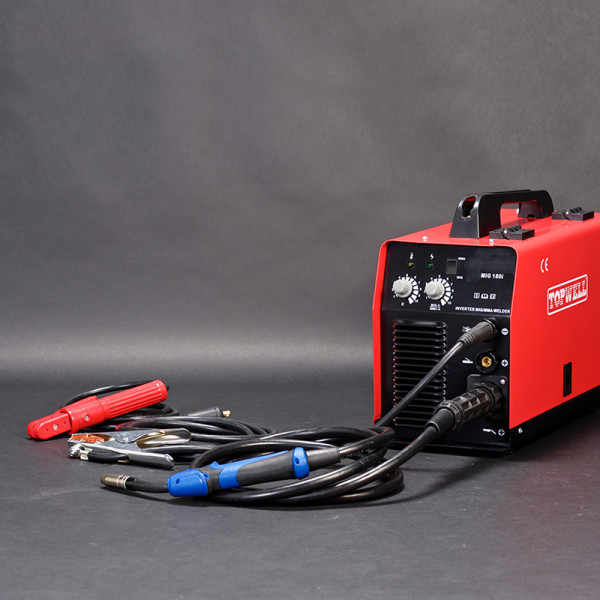

MIG-180i
| Categories | All products |
|---|---|
| Brand | TOPWELL |
| Model | mig welder Mag Mig Welding Machine Mig-180i |
| Rated Input Voltage | 1PH ~ 230V ±15% |
| MAX.Load Power Capacity | 6.1 KVA |
| Rated Output | 180A/24V |
| Max Open Circuit Voltage | 70V |
| Effiency | 0.73 |
| Wire-feed Mechanism | 2 Rollers |
| Wire feed Speed Range | 1-13m/min |
| Warranty | 1 year warranty |
| Dimension | 450x205x340mm(LxWxH) |
| Weight | 11KG |
| Unit Price | US $ 2 / piece |
| Download |     |
| Update Time | May 16,2025 |
/FEATURES
Quick Specs
- Light Industrial Application:
- Thin sheet metal fabrication
- Car repairs
- Agriculture
- Shipyards and offshore industry
- Installation and set-up
- Repair and maintenance
- Processes:
- MIG
- MIG (GMAW)
- Stick (SMAW)
- Input Power:230V, 1-Phase
- Amperage Range:30-180A
- Rated Output at 40℃ (104℉):
- 180A at 24V @60% Duty Cycle
- weight11kg
General View of Control Panel
Control Panel Parameter Values
1.Welding Current regulator.
2.Welding Voltage regulator.
3.MMA/MIG welding mode selection.
4.Power/working pilot lamp.
5.Work Error pilot lamp.
The short-circuiting metal transfer mode
The short-circuiting metal transfer mode is the low heat input
mode of metal transfer for GMAW and has higher electrode
efficiencies, 93% or more. The low heat input reduces
weldment distortion and makes it ideal for sheet metal
thickness materials.
Wire-feeder
1. Wire-inching button
2. Plug for change the output +/- polarity,
used for solid wire or flux coated wires.
3. Wire-feeder
4. 1KG/5KG wire spool holder
Super mobility
For independence of movement in and around workshop or site./SPECIFICATIONS
Technical specifications
Item No MIG-180i Rated Input Voltage 1PH ~ 230V ±15% Max. Load Power Capacity 6.1 KVA Rated Duty Cycle(40℃) 60% MIG: 180A/24V MMA: 180A/27.2V 100% MIG: 150A/21.5V MMA: 150A/26V Welding Current/Voltage Range MIG: 30A/15.5V~180A/24V MMA: 30A/21.2V~180A/27.2V Open Circuit Voltage 70V Power Factor 0.73 Efficiency 80% Pre-Gas Time 0~15S Flow-Gas Time 0~15S Wire-feed Mechanism 2 Rollers Wire-feed Speed Range 1-13m/min Wire Spool Capacity 200mm (5kg) Filler Wires Ø (mm) Fe solid wire: 0.6~1.0 mm Fe cored wire: 0.8~1.0mm Dimension (LxWxH) 450x205x340mm Weight (KG) 11 KG
/ACCESSORIES
For Standard accessoriesFor Optional accessories/RESOURCES
